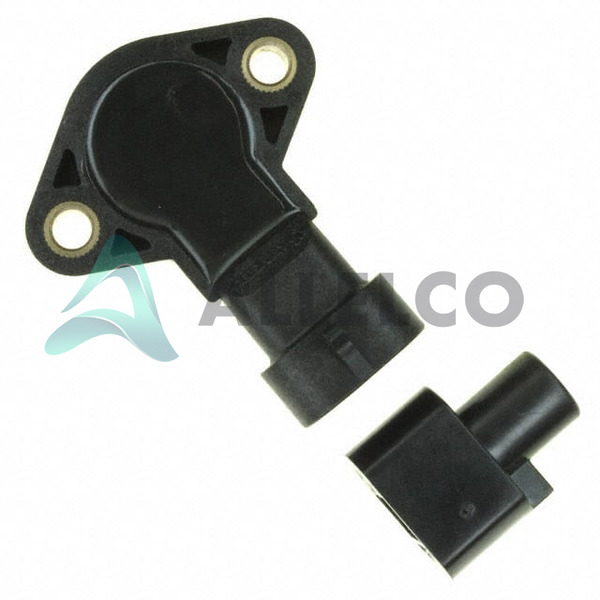

CU103601 - ZF Electronics

Pengeluar Nombor Bahagian: CU103601

Pengeluar: ZF Electronics

Allelco Nombor Bahagian: 98D-CU103601

Waranti: Waranti Allelco 1 tahun - Ketahui lebih lanjut

Penerangan Bahagian: SENSOR ANGLE 180DEG CONNECTOR

Pakej: Box with Connector

Lembaran data: 1.CU103601.pdf ...

Helaian data
AN8 Series Datasheet.pdf

Status RoHS: Mematuhi ROHS3

~~Bandingkan~~

Pensijilan kami

Dalam stok: 37227

Harga seunit: $70.83
jumlah kecil: $0.00

Mahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.

Kuantiti	Harga seunit	Ext.Harga
1+	$70.83	$70.83
200+	$28.26	$5,652.00
500+	$27.32	$13,660.00
1000+	$26.85	$26,850.00

Harga di atas tidak termasuk cukai dan kadar pengangkutan, yang akan dikira pada halaman pesanan.

PILIHAN EXPRESS

Kaedah pembayaran

Pensijilan kami

Spesifikasi

Spesifikasi teknologi CU103601
Spesifikasi Teknikal ZF Electronics - CU103601, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan ZF Electronics - CU103601

Atribut produk	Nilai atribut
Pengeluar	ZF Electronics
Voltan - Bekalan	5V
Style penamatan	Connector
Teknologi	Hall Effect
Pembekal Peranti Pakej	-
Siri	-
Putaran Sudut - Elektrik, Mekanikal	0° ~ 180°, Continuous
rintangan Toleransi	-
Pakej / Kes	Box with Connector

Atribut produk	Nilai atribut
Pakej	Box
output isyarat	Clockwise Increase
Pengeluaran	Analog Voltage
Suhu Operasi	-40°C ~ 125°C
pemasangan Jenis	Chassis Mount
kelinearan	±3.5%
linear Range	-
untuk Mengukur	Angle
Jenis penggerak	External Magnet, Included

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Status RoHS	Mematuhi ROHS3
Tahap Sensitiviti Kelembapan (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8543.70.9860

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan ZF Electronics CU103601.

Atribut produk
Nombor Bahagian	CU103601	CU103602	CU103603	CU1041E
Pengeluar	ZF Electronics	ZF Electronics	ZF Electronics	Ohmite
Voltan - Bekalan	5V	5V	5V	-
Suhu Operasi	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-
Style penamatan	Connector	Connector	Connector	Solder Lug
pemasangan Jenis	Chassis Mount	Chassis Mount	Chassis Mount	Panel Mount
Putaran Sudut - Elektrik, Mekanikal	0° ~ 180°, Continuous	0° ~ 360°, Continuous	0° ~ 45°, Continuous	-
kelinearan	±3.5%	±3.5%	±3.5%	-
output isyarat	Clockwise Increase	Clockwise Increase	Clockwise Increase	-
Pakej / Kes	Box with Connector	Box with Connector	Box with Connector	-
Pengeluaran	Analog Voltage	Analog Voltage	Analog Voltage	-
Jenis penggerak	External Magnet, Included	External Magnet, Included	External Magnet, Included	Round
Siri	-	-	-	CU
untuk Mengukur	Angle	Angle	Angle	-
rintangan Toleransi	-	-	-	-
linear Range	-	-	-	-
Pembekal Peranti Pakej	-	-	-	-
Pakej	Box	Box	Box	Bulk
Teknologi	Hall Effect	Hall Effect	Hall Effect	-

CU103601 datasheet pdf

Muat turun CU103601 PDF datasheets dan dokumentasi ZF Electronics untuk CU103601 - ZF Electronics.

Helaian data: AN8 Series Datasheet.pdf
