Spesifikasi

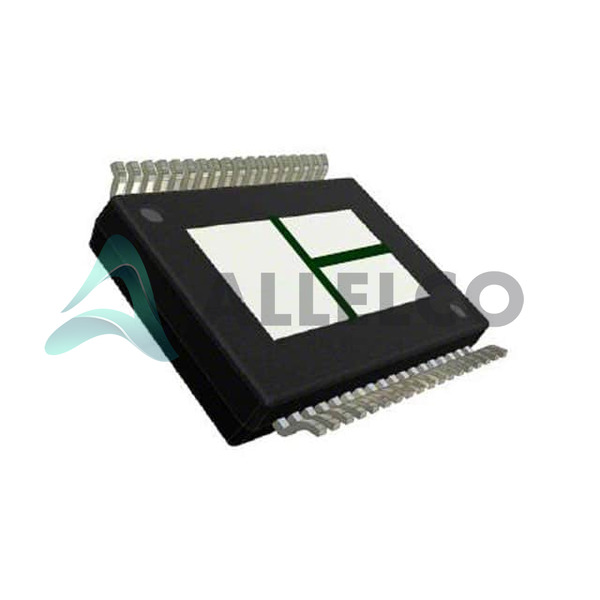

Spesifikasi teknologi VNH7013XP-E
Spesifikasi Teknikal STMicroelectronics - VNH7013XP-E, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan STMicroelectronics - VNH7013XP-E

Atribut produk	Nilai atribut
Pengeluar	STMicroelectronics
Voltan - Bekalan	72V (Max)
Voltan - Beban	-
Teknologi	Power MOSFET
Pembekal Peranti Pakej	PowerSSO-36 TP
Siri	VIPower™
Rds On (Typ)	7.3mOhm LS, 5.7mOhm HS
Pakej / Kes	36-PowerBFSOP (0.295', 7.50mm Width)
Pakej	Tube
Konfigurasi output	Half Bridge (2)

Atribut produk	Nilai atribut
Suhu Operasi	-40°C ~ 175°C (TJ)
pemasangan Jenis	Surface Mount
Jenis beban	Inductive
antara muka	Logic
ciri-ciri	-
Perlindungan kesalahan	Over Temperature
Semasa - Peak Output	-
Semasa - Output / Channel	40A
Nombor produk asas	VNH7013
aplikasi	DC Motors, General Purpose

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Status RoHS	Mematuhi ROHS3
Tahap Sensitiviti Kelembapan (MSL)	3 (168 Hours)
Mencapai status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan STMicroelectronics VNH7013XP-E.

Atribut produk
Nombor Bahagian	VNH7013XP-E	VNH7013XPTR-E	VNH5200AS-E	VNH5180ATR-E
Pengeluar	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
antara muka	Logic	Logic	On/Off	Parallel, PWM
Semasa - Output / Channel	40A	40A	-	-
Voltan - Beban	-	-	5.5V ~ 18V	5.5V ~ 18V
ciri-ciri	-	-	-	-
Jenis beban	Inductive	Inductive	-	-
Teknologi	Power MOSFET	Power MOSFET	Power MOSFET	Power MOSFET
Suhu Operasi	-40°C ~ 175°C (TJ)	-40°C ~ 175°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Konfigurasi output	Half Bridge (2)	Half Bridge (2)	Half Bridge (2)	Half Bridge (2)
Perlindungan kesalahan	Over Temperature	Over Temperature	-	-
Siri	VIPower™	VIPower™	Automotive	ECOPACK®, VIPower™
Pembekal Peranti Pakej	PowerSSO-36 TP	PowerSSO-36 TP	16-SO	PowerSSO-36 TP
pemasangan Jenis	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Rds On (Typ)	7.3mOhm LS, 5.7mOhm HS	7.3mOhm LS, 5.7mOhm HS	-	-
Semasa - Peak Output	-	-	-	-
Nombor produk asas	VNH7013	VNH7013	VNH5200	VNH5180
Voltan - Bekalan	72V (Max)	72V (Max)	5.5V ~ 18V	5.5V ~ 18V
aplikasi	DC Motors, General Purpose	DC Motors, General Purpose	Automotive	Automotive
Pakej / Kes	36-PowerBFSOP (0.295', 7.50mm Width)	36-PowerBFSOP (0.295', 7.50mm Width)	16-SOIC (0.154", 3.90mm Width)	36-PowerBFSOP (0.295", 7.50mm Width)
Pakej	Tube	Tape & Reel (TR)	Tube	Tape & Reel (TR)
