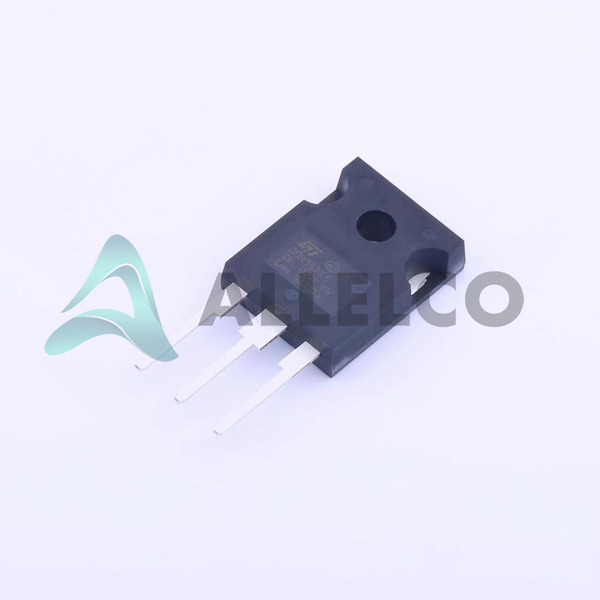

STW20N95DK5 - STMicroelectronics

Name: STMicroelectronics STW20N95DK5
Brand: STMicroelectronics
SKU: STW20N95DK5
Price: 2.724 USD
Availability: InStock
Rating: 5 (7 reviews)

Pengeluar Nombor Bahagian: STW20N95DK5

Pengeluar: STMicroelectronics

Allelco Nombor Bahagian: 98D-STW20N95DK5

Waranti: Waranti Allelco 1 tahun - Ketahui lebih lanjut

Penerangan Bahagian: MOSFET N-CH 950V 18A TO247

Pakej: TO-247-3

Lembaran data: 1.STW20N95DK5.pdf ...

Helaian data
Spice Model Tutorial for Power MOSFETS.pdf STW(A)20N95DK5 Datasheet.pdf

Reka bentuk/spesifikasi PCN
Mult Dev Adv Material Notice 8/Apr/2019.pdf

Perhimpunan/Asal PCN
New Molding Compound 13/Sep/2019.pdf

Status RoHS: Mematuhi ROHS3

~~Bandingkan~~

Pensijilan kami

Dalam stok: 49807

Harga seunit: $3.801
jumlah kecil: $0.00

Mahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.

Kuantiti	Harga seunit	Ext.Harga
1+	$3.801	$3.80
10+	$3.358	$33.58
30+	$3.089	$92.67
100+	$2.724	$272.40

Harga di atas tidak termasuk cukai dan kadar pengangkutan, yang akan dikira pada halaman pesanan.

PILIHAN EXPRESS

Kaedah pembayaran

Pensijilan kami

Spesifikasi

Spesifikasi teknologi STW20N95DK5
Spesifikasi Teknikal STMicroelectronics - STW20N95DK5, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan STMicroelectronics - STW20N95DK5

Atribut produk	Nilai atribut
Pengeluar	STMicroelectronics
VGS (th) (Max) @ Id	5V @ 100µA
VGS (Max)	±30V
Teknologi	MOSFET (Metal Oxide)
Pembekal Peranti Pakej	TO-247-3
Siri	MDmesh™ DK5
Rds On (Max) @ Id, VGS	330mOhm @ 9A, 10V
Kuasa Penyebaran (Max)	250W (Tc)
Pakej / Kes	TO-247-3
Pakej	Tube

Atribut produk	Nilai atribut
Suhu Operasi	-55°C ~ 150°C (TJ)
pemasangan Jenis	Through Hole
Input kemuatan (CISS) (Max) @ Vds	1600 pF @ 100 V
Gate Charge (QG) (Max) @ VGS	50.7 nC @ 10 V
Jenis FET	N-Channel
FET Ciri	-
Drive Voltan (Max Rds On, Min Rds On)	10V
Parit untuk Source Voltan (Vdss)	950 V
Semasa - Drain berterusan (Id) @ 25 ° C	18A (Tc)
Nombor produk asas	STW20

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Status RoHS	Mematuhi ROHS3
Tahap Sensitiviti Kelembapan (MSL)	1 (Unlimited)
Mencapai status	REACH Unaffected
ECCN	EAR99

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan STMicroelectronics STW20N95DK5.

Atribut produk
Nombor Bahagian	STW20N95K5	STW20N65M5	STW20NK50Z	STW20NK70Z
Pengeluar	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Pembekal Peranti Pakej	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Parit untuk Source Voltan (Vdss)	-	-	-	-
Drive Voltan (Max Rds On, Min Rds On)	-	-	-	-
Siri	-	-	-	-
Pakej / Kes	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Semasa - Drain berterusan (Id) @ 25 ° C	-	-	-	-
Jenis FET	-	-	-	-
Gate Charge (QG) (Max) @ VGS	-	-	-	-
Input kemuatan (CISS) (Max) @ Vds	-	-	-	-
Kuasa Penyebaran (Max)	-	-	-	-
Rds On (Max) @ Id, VGS	-	-	-	-
VGS (th) (Max) @ Id	-	-	-	-
FET Ciri	-	-	-	-
Pakej	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Suhu Operasi	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Teknologi	-	-	-	-
pemasangan Jenis	-	Surface Mount	Through Hole	Surface Mount
Nombor produk asas	-	DAC34H84	MAX500	ADS62P42
VGS (Max)	-	-	-	-

STW20N95DK5 datasheet pdf

Muat turun STW20N95DK5 PDF datasheets dan dokumentasi STMicroelectronics untuk STW20N95DK5 - STMicroelectronics.

Helaian data: Spice Model Tutorial for Power MOSFETS.pdf STW(A)20N95DK5 Datasheet.pdf
Reka bentuk/spesifikasi PCN: Mult Dev Adv Material Notice 8/Apr/2019.pdf
Perhimpunan/Asal PCN: New Molding Compound 13/Sep/2019.pdf
