Rumah Produk Discrete Semiconductor Produk Diod - Penerus - Perlengkapan~~BAT54CFILM~~

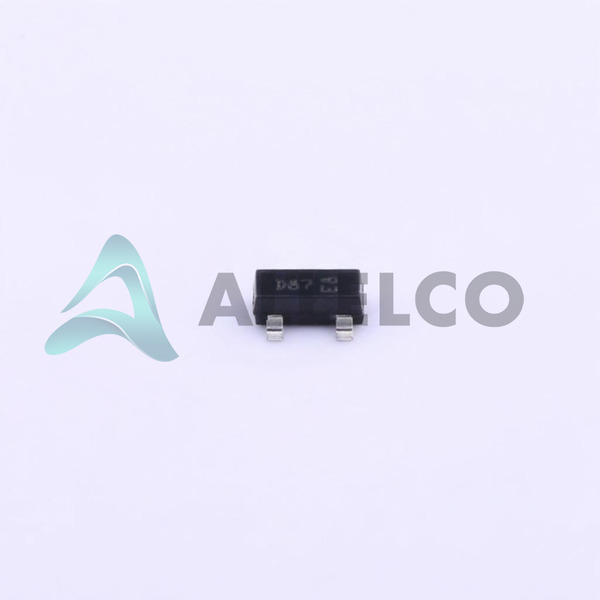

Imej mungkin perwakilan.
Lihat spesifikasi untuk butiran produk.

~~Kegemaran~~

PILIHAN EXPRESS

Kaedah pembayaran

BAT54CFILM - STMicroelectronics

Name: STMicroelectronics BAT54CFILM
Brand: STMicroelectronics
SKU: BAT54CFILM
Price: 0.033 USD
Availability: InStock
Rating: 5 (8 reviews)

Pengeluar Nombor Bahagian: BAT54CFILM

Pengeluar: STMicroelectronics

Allelco Nombor Bahagian: 32D-BAT54CFILM

Waranti: Waranti Allelco 1 tahun - Ketahui lebih lanjut

Penerangan Bahagian: DIODE ARRAY SCHOTTKY 40V SOT23-3

Pakej: SOT-23-3

Lembaran data: 1.BAT54CFILM.pdf ...

Helaian data
BAT54 Series Datasheet.pdf

Pembungkusan PCN
Box Label Chg 28/Jul/2016.pdf

Status RoHS: Mematuhi ROHS3

~~Bandingkan~~

Pensijilan kami

Dalam stok: 535400

Harga seunit: $0.05
jumlah kecil: $0.00

Mahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.

Kuantiti	Harga seunit	Ext.Harga
10+	$0.05	$0.50
100+	$0.043	$4.30
300+	$0.039	$11.70
3000+	$0.036	$108.00
6000+	$0.034	$204.00
9000+	$0.033	$297.00

Harga di atas tidak termasuk cukai dan kadar pengangkutan, yang akan dikira pada halaman pesanan.

PILIHAN EXPRESS

Kaedah pembayaran

Pensijilan kami

Spesifikasi

Spesifikasi teknologi BAT54CFILM
Spesifikasi Teknikal STMicroelectronics - BAT54CFILM, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan STMicroelectronics - BAT54CFILM

Atribut produk	Nilai atribut
Pengeluar	STMicroelectronics
Voltan - Penyerang (Vf) (Max) @ Jika	900 mV @ 100 mA
Voltan - DC Reverse (Vr) (Max)	40 V
Teknologi	Schottky
Pembekal Peranti Pakej	SOT-23-3
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Siri	-
Reverse Recovery Time (TRR)	5 ns

Atribut produk	Nilai atribut
Pakej / Kes	TO-236-3, SC-59, SOT-23-3
Pakej	Tape & Reel (TR)
Suhu operasi - Junction	-40°C ~ 150°C
pemasangan Jenis	Surface Mount
Konfigurasi diod	1 Pair Common Cathode
Semasa - Songsang Kebocoran @ Vr	1 µA @ 30 V
Semasa - Purata Rectified (Io) (per Diode)	300mA (DC)
Nombor produk asas	BAT54

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Status RoHS	Mematuhi ROHS3
Tahap Sensitiviti Kelembapan (MSL)	1 (Unlimited)
Mencapai status	REACH Unaffected
ECCN	EAR99

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan STMicroelectronics BAT54CFILM.

Atribut produk
Nombor Bahagian	BAT54CLT1	BAT54CHMFHT116	BAT54CDW-13-F	BAT54CHYFHT116
Pengeluar	onsemi	Rohm Semiconductor	Diodes Incorporated	Rohm Semiconductor
Semasa - Purata Rectified (Io) (per Diode)	-	-	-	-
pemasangan Jenis	-	Surface Mount	Through Hole	Surface Mount
Voltan - Penyerang (Vf) (Max) @ Jika	-	-	-	-
Siri	-	-	-	-
Voltan - DC Reverse (Vr) (Max)	-	-	-	-
Pakej / Kes	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Nombor produk asas	-	DAC34H84	MAX500	ADS62P42
Teknologi	-	-	-	-
Pembekal Peranti Pakej	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Konfigurasi diod	-	-	-	-
Speed	-	-	-	-
Reverse Recovery Time (TRR)	-	-	-	-
Semasa - Songsang Kebocoran @ Vr	-	-	-	-
Suhu operasi - Junction	-	-	-	-
Pakej	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)

BAT54CFILM datasheet pdf

Muat turun BAT54CFILM PDF datasheets dan dokumentasi STMicroelectronics untuk BAT54CFILM - STMicroelectronics.

Helaian data: BAT54 Series Datasheet.pdf
Pembungkusan PCN: Box Label Chg 28/Jul/2016.pdf
