Helaian data
Cylindrical Battery Holders.pdfMaklumat alam sekitar
Pulse Larson REACH.pdfSpesifikasi teknologi PG0123NL

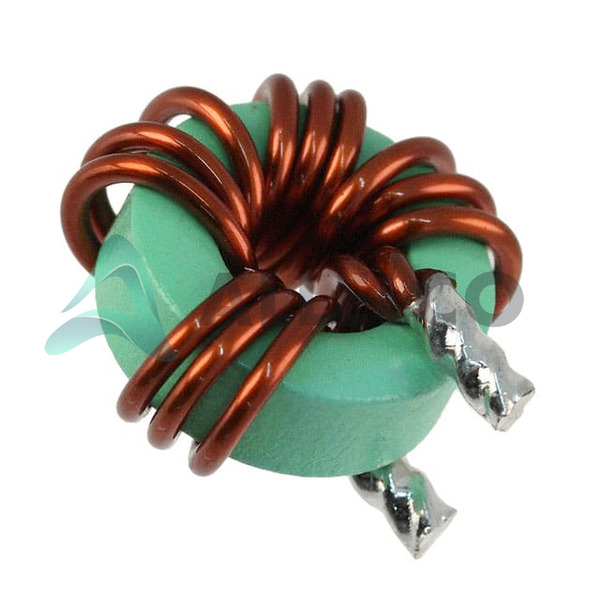

Spesifikasi Teknikal Pulse Electronics - PG0123NL, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Pulse Electronics - PG0123NL
| Atribut produk | Nilai atribut | |
|---|---|---|
| Pengeluar | Pulse Electronics | |
| Jenis | Toroidal | |
| Toleransi | - | |
| Pembekal Peranti Pakej | - | |
| Saiz / Dimensi | 0.807' Dia x 0.413' W (20.50mm x 10.50mm) | |
| perisai | Unshielded | |
| Siri | Bare Coil | |
| penilaian | - | |
| Q @ Freq | - | |
| Pakej / Kes | Radial, Vertical (Open) | |
| Pakej | Tray |
| Atribut produk | Nilai atribut | |
|---|---|---|
| Suhu Operasi | -40°C ~ 130°C | |
| pemasangan Jenis | Through Hole | |
| Bahan - Teras | - | |
| inductance | 490 nH | |
| Tinggi - Duduk (Max) | - | |
| Kekerapan - Sendiri salunan | - | |
| ciri-ciri | - | |
| DC Rintangan (DCR) | 0.85mOhm Max | |
| Penarafan Semasa (AMPS) | 48 A | |
| Semasa - Ketepuan (ISAT) | - |
| ATRIBUT | PENERANGAN |
|---|---|
| Status RoHS | Mematuhi ROHS3 |
| Tahap Sensitiviti Kelembapan (MSL) | 1 (Unlimited) |
| Mencapai status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Pulse Electronics PG0123NL.
| Atribut produk | ![]() |
![]() |
![]() |
![]() |
|---|---|---|---|---|
| Nombor Bahagian | PG0200.132NL | PG0138.222NLT | PG0138.601NLT | PG0138.102NLT |
| Pengeluar | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Tinggi - Duduk (Max) | - | - | - | - |
| Q @ Freq | - | - | - | - |
| Jenis | - | - | - | - |
| Pakej / Kes | - | 196-LFBGA | 16-DIP (0.300', 7.62mm) | 64-VFQFN Exposed Pad |
| Pembekal Peranti Pakej | - | 196-NFBGA (12x12) | 16-PDIP | 64-VQFN (9x9) |
| Bahan - Teras | - | - | - | - |
| perisai | - | - | - | - |
| Toleransi | - | - | - | - |
| Penarafan Semasa (AMPS) | - | - | - | - |
| pemasangan Jenis | - | Surface Mount | Through Hole | Surface Mount |
| ciri-ciri | - | - | - | Simultaneous Sampling |
| DC Rintangan (DCR) | - | - | - | - |
| Suhu Operasi | - | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| penilaian | - | - | - | - |
| Kekerapan - Sendiri salunan | - | - | - | - |
| Pakej | - | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Semasa - Ketepuan (ISAT) | - | - | - | - |
| Siri | - | - | - | - |
| Saiz / Dimensi | - | - | - | - |
| inductance | - | - | - | - |
Muat turun PG0123NL PDF datasheets dan dokumentasi Pulse Electronics untuk PG0123NL - Pulse Electronics.
PG0138.601NLTPulse ElectronicsFIXED IND 600NH 28.3A 1.75 MOHM
PG0138.102NLTPulse ElectronicsFIXED IND 1UH 21A 3.6 MOHM SMD
PG0116NLPulse ElectronicsFIXED IND 1.7UH 14.9A 4.2MOHM TH
PG0138.472NLTPulse ElectronicsFIXED IND 4.7UH 10.2A 12.4 MOHM
PG0200.102NLPulse ElectronicsFIXED IND 1UH 23A 2.4 MOHM TH
PG0138.552NLTPulse ElectronicsFIXED IND 5.5UH 8.2A 12.4MOHM SM
PG0138.332NLTPulse ElectronicsFIXED IND 3.3UH 11.5A 10.4 MOHM
PG0138.222NLTPulse ElectronicsFIXED IND 2.2UH 13.5A 7.5MOHM SM
PG0155.102NLTPulse ElectronicsFIXED IND 1UH 14A 5.8 MOHM SMD
PG0200.132NLPulse ElectronicsFIXED IND 1.3UH 19A 3 MOHM THAlamat e -mel anda tidak akan diterbitkan.
