Helaian data
1000044.pdfMahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.
| Kuantiti | Harga seunit | Ext.Harga |
|---|---|---|
| 1+ | $60.051 | $60.05 |
| 200+ | $23.961 | $4,792.20 |
| 500+ | $23.16 | $11,580.00 |
| 1000+ | $22.765 | $22,765.00 |

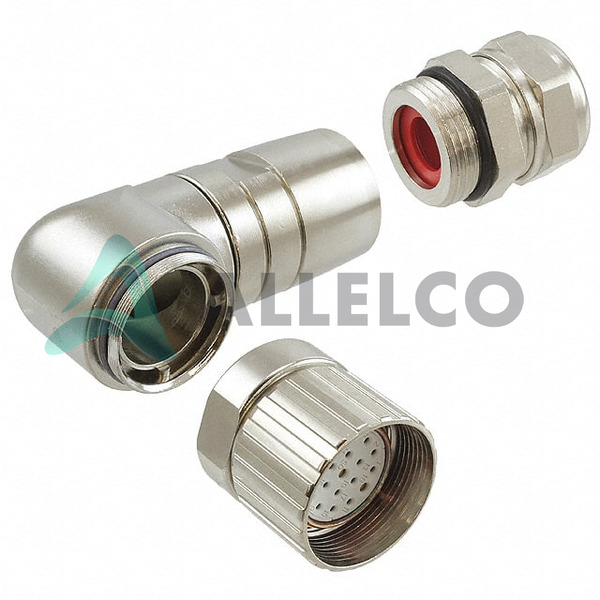

Spesifikasi teknologi 1000044
Spesifikasi Teknikal Phoenix Contact - 1000044, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Phoenix Contact - 1000044
| Atribut produk | Nilai atribut | |
|---|---|---|
| Pengeluar | Phoenix Contact | |
| Penilaian voltan | 150V | |
| penamatan | Solder Cup | |
| perisai | - | |
| Shell saiz, MIL | - | |
| Shell Saiz - Insert | M23-19 | |
| Bahan Shell | Gadolinium-Zinc | |
| Shell Selesai | Nickel | |
| Siri | V | |
| Bahan utama | Metal | |
| Pakej | Bulk | |
| orientasi | Keyed | |
| Suhu Operasi | -20°C ~ 80°C | |
| Bilangan Jawatan | 19 | |
| pemasangan Jenis | Free Hanging (In-Line), Right Angle |
| Atribut produk | Nilai atribut | |
|---|---|---|
| pemasangan Ciri | - | |
| Bahan Terbakar Rating | UL94 V-0 | |
| Masukkan bahan | Polybutylene Terephthalate (PBT) | |
| Perlindungan Ingress | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | |
| ciri-ciri | Backshell, Coupling Nut | |
| Jenis Fastening | Threaded | |
| Penarafan Semasa (AMPS) | 10A | |
| Hubungi bahan | Copper Zinc | |
| Cara Selesai Ketebalan - Mengawan | - | |
| Cara Selesai - Mengawan | Gold | |
| Jenis penyambung | Receptacle, Female Sockets | |
| warna | Silver | |
| Pembukaan kabel | 0.394" ~ 0.551" (10.00mm ~ 14.00mm) | |
| Bahan backshell, Penyaduran | Gadolinium-Zinc, Nickel | |
| aplikasi | - |
| ATRIBUT | PENERANGAN |
|---|---|
| Status RoHS | RoHS Compliant |
| Tahap Sensitiviti Kelembapan (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Phoenix Contact 1000044.
| Atribut produk | ![]() |
|||
|---|---|---|---|---|
| Nombor Bahagian | 1000044 | 1000041 | 1000042 | 1000043 |
| Pengeluar | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| Masukkan bahan | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Penilaian voltan | 150V | 150V | 150V | 150V |
| Bahan Terbakar Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| aplikasi | - | - | - | - |
| warna | Silver | Silver | Silver | Silver |
| perisai | - | - | - | - |
| pemasangan Jenis | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Cara Selesai Ketebalan - Mengawan | - | - | - | - |
| Shell Saiz - Insert | M23-19 | M23-12 | M23-19 | M23-12 |
| Pembukaan kabel | 0.394" ~ 0.551" (10.00mm ~ 14.00mm) | 0.315" ~ 0.472" (8.00mm ~ 12.00mm) | 0.394" ~ 0.551" (10.00mm ~ 14.00mm) | 0.315" ~ 0.472" (8.00mm ~ 12.00mm) |
| Shell saiz, MIL | - | - | - | - |
| Bahan Shell | Gadolinium-Zinc | Gadolinium-Zinc | Gadolinium-Zinc | Gadolinium-Zinc |
| Perlindungan Ingress | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Suhu Operasi | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Penarafan Semasa (AMPS) | 10A | 8A | 10A | 8A |
| Cara Selesai - Mengawan | Gold | Gold | Gold | Gold |
| Jenis penyambung | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Bilangan Jawatan | 19 | 12 | 19 | 12 |
| penamatan | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Shell Selesai | Nickel | Nickel | Nickel | Nickel |
| ciri-ciri | Backshell, Coupling Nut | Backshell, Coupling Nut | Backshell, Coupling Nut | Backshell, Coupling Nut |
| Siri | V | V | V | V |
| Hubungi bahan | Copper Zinc | Copper Zinc | Copper Zinc | Copper Zinc |
| Pakej | Bulk | Bulk | Bulk | Bulk |
| pemasangan Ciri | - | - | - | - |
| orientasi | Keyed | Keyed | Keyed | Keyed |
| Jenis Fastening | Threaded | Threaded | Threaded | Threaded |
| Bahan utama | Metal | Metal | Metal | Metal |
| Bahan backshell, Penyaduran | Gadolinium-Zinc, Nickel | Gadolinium-Zinc, Nickel | Gadolinium-Zinc, Nickel | Gadolinium-Zinc, Nickel |
Muat turun 1000044 PDF datasheets dan dokumentasi Phoenix Contact untuk 1000044 - Phoenix Contact.
