Rumah Produk Litar Bersepadu (IC)Pengambilalihan Data - Digital to Analog Converters (DAC)~~MCP4801-E/MC~~

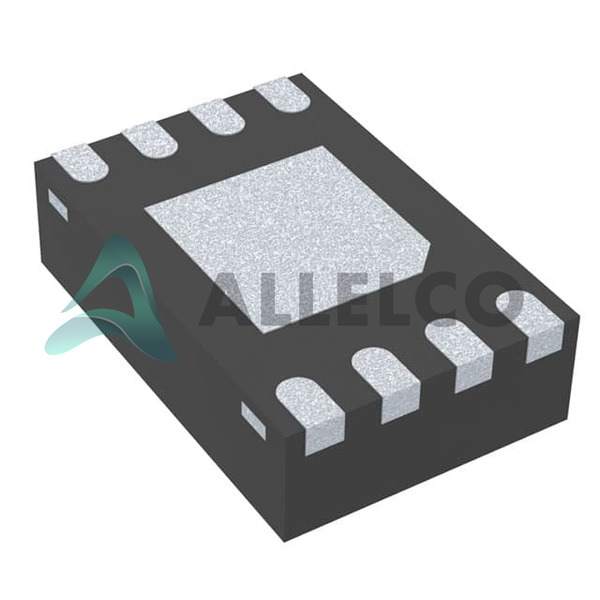

Imej mungkin perwakilan.
Lihat spesifikasi untuk butiran produk.

~~Kegemaran~~

PILIHAN EXPRESS

Kaedah pembayaran

MCP4801-E/MC - Microchip Technology

Name: Microchip Technology MCP4801-E/MC
Brand: Microchip Technology
SKU: MCP4801-E/MC
Price: 0.297 USD
Availability: InStock
Rating: 5 (5 reviews)

Pengeluar Nombor Bahagian: MCP4801-E/MC

Pengeluar: Microchip Technology

Allelco Nombor Bahagian: 98D-MCP4801-E/MC

Waranti: Waranti Allelco 1 tahun - Ketahui lebih lanjut

Penerangan Bahagian: IC DAC 8BIT V-OUT 8DFN

Pakej: 8-DFN (2x3)

Lembaran data: 1.MCP4801-E/MC.pdf ...

Helaian data
MCP4801/11/21.pdf

Pembungkusan PCN
Packing Changes 10/Oct/2016.pdf Label and Packing Changes 23/Sep/2015.pdf

Reka bentuk/spesifikasi PCN
Lead Frame Update 29/Jun/2015.pdf Mold Compound Update 18/Feb/2015.pdf

Perhimpunan/Asal PCN
Assembly Site 27/Jan/2021.pdf

Dokumen lain yang berkaitan
Development Tools Catalog.pdf

Status RoHS: Mematuhi ROHS3

~~Bandingkan~~

Pensijilan kami

Dalam stok: 40718

Harga seunit: $0.809
jumlah kecil: $0.00

Mahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.

Kuantiti	Harga seunit	Ext.Harga
1+	$0.809	$0.81
200+	$0.314	$62.80
500+	$0.302	$151.00
1000+	$0.297	$297.00

Harga di atas tidak termasuk cukai dan kadar pengangkutan, yang akan dikira pada halaman pesanan.

PILIHAN EXPRESS

Kaedah pembayaran

Pensijilan kami

Spesifikasi

Spesifikasi teknologi MCP4801-E/MC
Spesifikasi Teknikal Microchip Technology - MCP4801-E/MC, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Microchip Technology - MCP4801-E/MC

Atribut produk	Nilai atribut
Pengeluar	Microchip Technology
Voltan - Bekalan, Digital	2.7V ~ 5.5V
Voltan - Bekalan, Analog	2.7V ~ 5.5V
Pembekal Peranti Pakej	8-DFN (2x3)
menjelaskan Masa	4.5µs (Typ)
Siri	-
Jenis rujukan	Internal
Pakej / Kes	8-VFDFN Exposed Pad
Pakej	Tube
Jenis output	Voltage - Buffered

Atribut produk	Nilai atribut
Suhu Operasi	-40°C ~ 125°C
Bilangan D / A Converters	1
Bilangan Bits	8
pemasangan Jenis	Surface Mount
INL / DNL (LSB)	±0.25, ±0.2
Output Berbeza	No
Antara Muka Data	SPI
Nombor produk asas	MCP4801
Architecture	String DAC

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Status RoHS	Mematuhi ROHS3
Tahap Sensitiviti Kelembapan (MSL)	1 (Unlimited)
Mencapai status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Microchip Technology MCP4801-E/MC.

Atribut produk
Nombor Bahagian	MCP4801T-E/MC	MCP4801T-E/MS	MCP4801-E/SN	MCP4802-E/MS
Pengeluar	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Pakej / Kes	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Bilangan D / A Converters	-	4	4	-
Pembekal Peranti Pakej	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Nombor produk asas	-	DAC34H84	MAX500	ADS62P42
Jenis output	-	Current - Unbuffered	Voltage - Buffered	-
menjelaskan Masa	-	10ns (Typ)	4.5µs	-
Voltan - Bekalan, Digital	-	1.14V ~ 1.26V	11.4V ~ 16.5V	1.65V ~ 3.6V
INL / DNL (LSB)	-	±4, ±2	±1 (Max), ±1 (Max)	-
Pakej	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Antara Muka Data	-	LVDS - Parallel	I²C	LVDS - Parallel, Parallel
Siri	-	-	-	-
Suhu Operasi	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Bilangan Bits	-	16	8	14
Voltan - Bekalan, Analog	-	3.14V ~ 3.46V	11.4V ~ 16.5V	3V ~ 3.6V
Architecture	-	Current Source	R-2R	Pipelined
Jenis rujukan	-	External, Internal	External	External, Internal
pemasangan Jenis	-	Surface Mount	Through Hole	Surface Mount
Output Berbeza	-	Yes	No	-
