Rumah Produk Pengaruh, Gelung, pencekik Inductors tetap~~HCP0703-R22-R~~

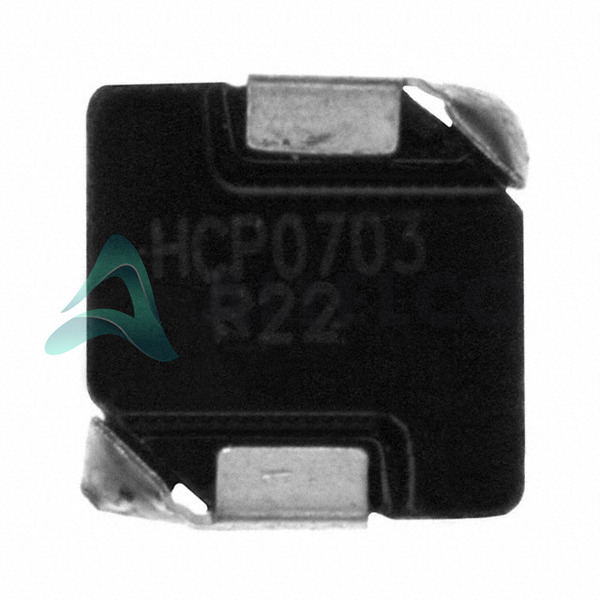

Imej mungkin perwakilan.
Lihat spesifikasi untuk butiran produk.

~~Kegemaran~~

PILIHAN EXPRESS

Kaedah pembayaran

HCP0703-R22-R - Eaton - Electronics Division

Pengeluar Nombor Bahagian: HCP0703-R22-R

Pengeluar: Coiltronics (Eaton)

Allelco Nombor Bahagian: 98D-HCP0703-R22-R

Waranti: Waranti Allelco 1 tahun - Ketahui lebih lanjut

Penerangan Bahagian: FIXED IND 220NH 23A 2.8 MOHM SMD

Pakej: Nonstandard

Lembaran data: 1.HCP0703-R22-R.pdf ...

Helaian data
HCP0703 Series.pdf

PCN Ossolescence/ EOL
HCP0703 Series 14/May/2010.pdf

Pembungkusan PCN
HCP(0703,1104,1305) 5/Nov/2008.pdf

~~Bandingkan~~

Pensijilan kami

Dalam stok: 631352

PILIHAN EXPRESS

Kaedah pembayaran

Pensijilan kami

Spesifikasi

Spesifikasi teknologi HCP0703-R22-R
Spesifikasi Teknikal Eaton - Electronics Division - HCP0703-R22-R, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Eaton - Electronics Division - HCP0703-R22-R

Atribut produk	Nilai atribut
Pengeluar	Coiltronics (Eaton)
Jenis	Drum Core, Wirewound
Toleransi	±20%
Pembekal Peranti Pakej	-
Saiz / Dimensi	0.287" L x 0.276" W (7.30mm x 7.00mm)
perisai	Shielded
Siri	HCP0703
penilaian	-
Q @ Freq	-
Pakej / Kes	Nonstandard
Pakej	Tape & Reel (TR)

Atribut produk	Nilai atribut
Suhu Operasi	-55°C ~ 125°C
pemasangan Jenis	Surface Mount
Bahan - Teras	Iron Powder
Frekuensi Induktans - Ujian	100 kHz
inductance	220 nH
Tinggi - Duduk (Max)	0.118" (3.00mm)
Kekerapan - Sendiri salunan	-
DC Rintangan (DCR)	2.8mOhm Max
Penarafan Semasa (AMPS)	23 A
Semasa - Ketepuan (ISAT)	40A

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Tahap Sensitiviti Kelembapan (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Eaton - Electronics Division HCP0703-R22-R.

Atribut produk
Nombor Bahagian	HCP0703-R82-R	HCP0703-2R2-R	HCP0703-8R2-R	HCP0703-6R8-R
Pengeluar	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Saiz / Dimensi	-	-	-	-
Siri	-	-	-	-
Q @ Freq	-	-	-	-
Suhu Operasi	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Penarafan Semasa (AMPS)	-	-	-	-
DC Rintangan (DCR)	-	-	-	-
Frekuensi Induktans - Ujian	-	-	-	-
Kekerapan - Sendiri salunan	-	-	-	-
Pakej / Kes	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Semasa - Ketepuan (ISAT)	-	-	-	-
Pembekal Peranti Pakej	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
penilaian	-	-	-	-
perisai	-	-	-	-
Bahan - Teras	-	-	-	-
Toleransi	-	-	-	-
Jenis	-	-	-	-
pemasangan Jenis	-	Surface Mount	Through Hole	Surface Mount
Tinggi - Duduk (Max)	-	-	-	-
Pakej	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
inductance	-	-	-	-

HCP0703-R22-R datasheet pdf

Muat turun HCP0703-R22-R PDF datasheets dan dokumentasi Eaton - Electronics Division untuk HCP0703-R22-R - Eaton - Electronics Division.

Helaian data: HCP0703 Series.pdf
PCN Ossolescence/ EOL: HCP0703 Series 14/May/2010.pdf
Pembungkusan PCN: HCP(0703,1104,1305) 5/Nov/2008.pdf
