Helaian data
Cinterion® BGS5 Terminal.pdfReka bentuk/spesifikasi PCN
UKCA 10-Mar-2022.pdfMahukan harga yang lebih baik?
Tambah ke Cart dan Hantar RFQ Sekarang, kami akan menghubungi anda dengan segera.
| Kuantiti | Harga seunit | Ext.Harga |
|---|---|---|
| 1+ | $205.071 | $205.07 |
| 200+ | $81.825 | $16,365.00 |
| 500+ | $79.091 | $39,545.50 |
| 1000+ | $77.74 | $77,740.00 |

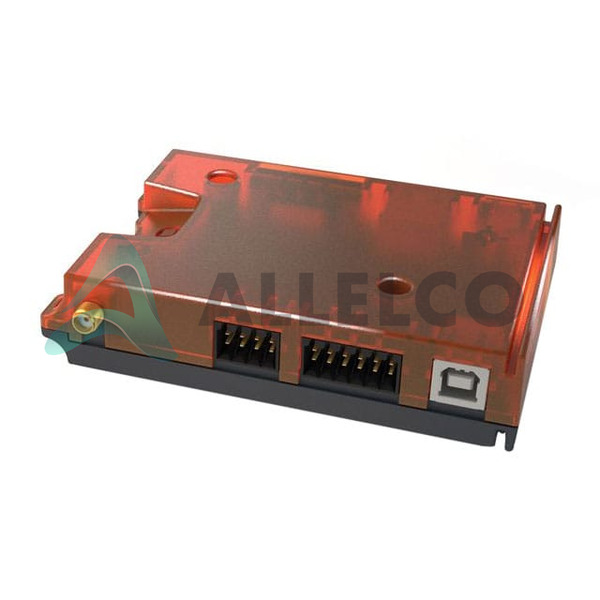

Spesifikasi teknologi BGS5T
Spesifikasi Teknikal Telit Cinterion - BGS5T, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Telit Cinterion - BGS5T
| Atribut produk | Nilai atribut | |
|---|---|---|
| Pengeluar | Telit Cinterion | |
| Voltan - Bekalan | 8V ~ 30V | |
| Digunakan IC / Bahagian | Intel XMM 1180 | |
| Siri | Cinterion BGS5T | |
| Antara muka bersiri | GPIO, I²C, PCM, PWM, RS232, USB | |
| kepekaan | -103dBm | |
| RF Keluarga / Standard | Cellular | |
| Protokol | GPRS, GSM | |
| Power - Output | 33dBm | |
| Pakej / Kes | Module | |
| Pakej | Box |
| Atribut produk | Nilai atribut | |
|---|---|---|
| Suhu Operasi | -40°C ~ 90°C | |
| pemasangan Jenis | DIN Rail | |
| modulasi | GMSK | |
| Saiz memori | 10MB Flash, 10MB RAM | |
| kekerapan | 850MHz, 900MHz, 1.8GHz, 1.9GHz | |
| Kadar Data | 85kbps | |
| Semasa - Memancar | 60mA ~ 530mA | |
| Semasa - Menerima | - | |
| Nombor produk asas | BGS5 | |
| Antenna Jenis | Antenna Not Included |
| ATRIBUT | PENERANGAN |
|---|---|
| Tahap Sensitiviti Kelembapan (MSL) | 1 (Unlimited) |
| ECCN | 5A992C |
| HTSUS | 8517.62.0090 |
Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Telit Cinterion BGS5T.
| Atribut produk | ||||
|---|---|---|---|---|
| Nombor Bahagian | BGS5T | BGS5 Rel.2 | BGS2T RS485 | BGS2T RS232 |
| Pengeluar | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion |
| kekerapan | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Protokol | GPRS, GSM | GPRS, GSM | GPRS, GSM | GPRS, GSM |
| Digunakan IC / Bahagian | Intel XMM 1180 | Intel XMM 1180 | Intel XGOLD1100 | Intel XGOLD1100 |
| Pakej | Box | Tape & Reel (TR) | Box | Box |
| Power - Output | 33dBm | 33dBm | 33dBm | 33dBm |
| Siri | Cinterion BGS5T | Cinterion BGS5 | Cinterion BGS2T | Cinterion BGS2T |
| RF Keluarga / Standard | Cellular | Cellular | Cellular | Cellular |
| Antenna Jenis | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Antara muka bersiri | GPIO, I²C, PCM, PWM, RS232, USB | ADC, GPIO, I²C, I²S, PCM, SPI, UART, USB | RS485 | RS232 |
| kepekaan | -103dBm | -110dBm | -110dBm | -110dBm |
| modulasi | GMSK | GMSK | GMSK | GMSK |
| Saiz memori | 10MB Flash, 10MB RAM | 10MB Flash, 10MB RAM | - | - |
| pemasangan Jenis | DIN Rail | Surface Mount | DIN Rail | DIN Rail |
| Suhu Operasi | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C |
| Semasa - Menerima | - | - | - | - |
| Kadar Data | 85kbps | 85kbps | 85kbps | 85kbps |
| Nombor produk asas | BGS5 | BGS5 | BGS2 | BGS2 |
| Semasa - Memancar | 60mA ~ 530mA | 30mA ~ 650mA | - | - |
| Pakej / Kes | Module | 114-BLGA Module | Module | Module |
| Voltan - Bekalan | 8V ~ 30V | 3.3V ~ 4.5V | 8V ~ 30V | 8V ~ 30V |
Muat turun BGS5T PDF datasheets dan dokumentasi Telit Cinterion untuk BGS5T - Telit Cinterion.
