Spesifikasi

Spesifikasi teknologi SSM2603CPZ-R2
Spesifikasi Teknikal Analog Devices Inc. - SSM2603CPZ-R2, Atribut, Parameter dan Bahagian dengan Spesifikasi Sama dengan Analog Devices Inc. - SSM2603CPZ-R2

Atribut produk	Nilai atribut
Pengeluar	Analog Devices, Inc.
Voltan - Bekalan, Digital	1.5V ~ 3.6V
Voltan - Bekalan, Analog	1.8V ~ 3.6V
Jenis	Stereo Audio
Pembekal Peranti Pakej	28-LFCSP-WQ (5x5)
Sigma Delta	No
Siri	-
S / N Ratio, ADC / DAC (db) Typ	90 / 100
Resolusi (Bits)	24 b

Atribut produk	Nilai atribut

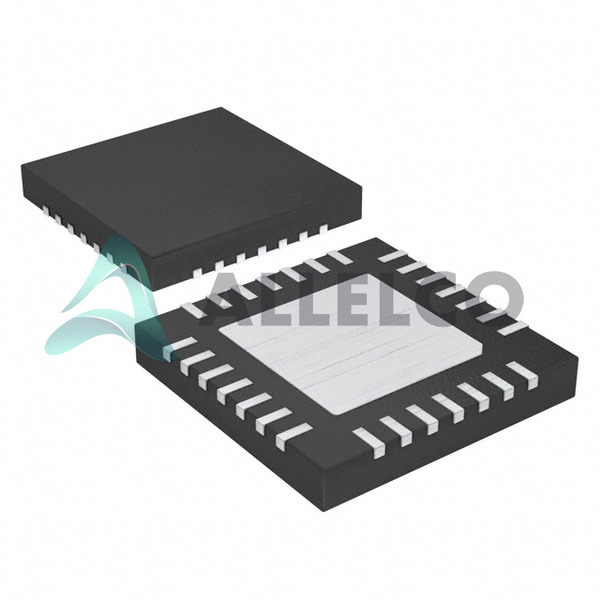

Pakej / Kes	28-WFQFN Exposed Pad, CSP
Pakej	Tape & Reel (TR)
Suhu Operasi	-40°C ~ 85°C
Bilangan ADC / DAC	2 / 2
pemasangan Jenis	Surface Mount
Dynamic Range, ADC / DAC (db) Typ	-
Antara Muka Data	-
Nombor produk asas	SSM2603

Klasifikasi Alam Sekitar & Eksport

ATRIBUT	PENERANGAN
Tahap Sensitiviti Kelembapan (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001

Bahagian dengan spesifikasi yang serupa

Tiga bahagian di sebelah kanan mempunyai spesifikasi yang sama dengan Analog Devices Inc. SSM2603CPZ-R2.

Atribut produk
Nombor Bahagian	SSM2603CPZ-REEL	SSM2603CPZ-REEL7	SSM2604CPZ-R2	SSM2604CPZ-REEL
Pengeluar	Analog Devices Inc.	Analog Devices Inc.	Analog Devices Inc.	Analog Devices Inc.
Dynamic Range, ADC / DAC (db) Typ	-	-	-	-
Bilangan ADC / DAC	-	-	-	-
Jenis	-	-	-	-
S / N Ratio, ADC / DAC (db) Typ	-	-	-	-
Nombor produk asas	-	DAC34H84	MAX500	ADS62P42
Suhu Operasi	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Resolusi (Bits)	-	-	-	-
Voltan - Bekalan, Analog	-	3.14V ~ 3.46V	11.4V ~ 16.5V	3V ~ 3.6V
Pembekal Peranti Pakej	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Siri	-	-	-	-
Sigma Delta	-	-	-	-
Antara Muka Data	-	LVDS - Parallel	I²C	LVDS - Parallel, Parallel
pemasangan Jenis	-	Surface Mount	Through Hole	Surface Mount
Voltan - Bekalan, Digital	-	1.14V ~ 1.26V	11.4V ~ 16.5V	1.65V ~ 3.6V
Pakej / Kes	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Pakej	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
